Compulab Tensor I-22: fanless industrial PC with Intel Core and Hailo AI
The Tensor I-22 is a configurable fanless industrial PC from Compulab. It combines an 11th Gen Intel Core processor with up to two Hailo-8 AI accelerators, so it can analyse many camera streams directly at the edge. You choose the front panel, the network ports and the interfaces. Compulab builds the system to your specification.One of the smallest full-featured industrial PCs
The Compulab Fitlet2 measures only 112 × 84 mm and runs without a fan. Hardware and housing were designed together to keep the size small and the cooling efficient. Choose between three Intel CPUs, add Ethernet, Wi-Fi, LTE, CAN or serial ports with FACET extension cards, and mount it on a wall, a VESA bracket or a DIN rail. nesevo supplies the Fitlet2 worldwide.
| Feature | Tensor I-22 |
|---|---|
| Processor | 11th Gen Intel Core i7, Core i5 or Celeron |
| AI performance | Up to two Hailo-8 accelerators, up to 52 TOPS |
| Memory | Up to 64 GB DDR4 |
| Displays | Up to four independent displays (2 × HDMI, 2 × mini-DisplayPort) |
| Interfaces | Modular front panels with USB, LAN, serial, GPIO and CAN options |
| Wireless | Wi-Fi 6E, Bluetooth 5.2, optional LTE/5G |
| Power | 12–56 V DC |
| Cooling | Fanless |
| Warranty | 5 years |
Why the Tensor I-22
Many edge AI projects fail on the same point: one box cannot handle video analysis, many interfaces and a harsh environment at once. The Tensor I-22 can. It is fanless, so there are no moving parts to wear out. Its Hailo AI accelerators run the neural networks while the Intel CPU handles everything else. Compulab has tested the system with up to 13 simultaneous 1080p30 video streams.
Modular by design
The front panel is where you decide what the Tensor I-22 connects to. Compulab offers panels with USB, Gigabit and 10 Gigabit Ethernet, PoE, isolated serial ports, isolated GPIO and CAN. You order the combination you need, and Compulab assembles it. That keeps the system small and avoids adapters and external boxes.
Choose your front panel
Three of the available front panel variants: USB and LAN, serial ports with terminal blocks, and serial ports with antenna connectors.

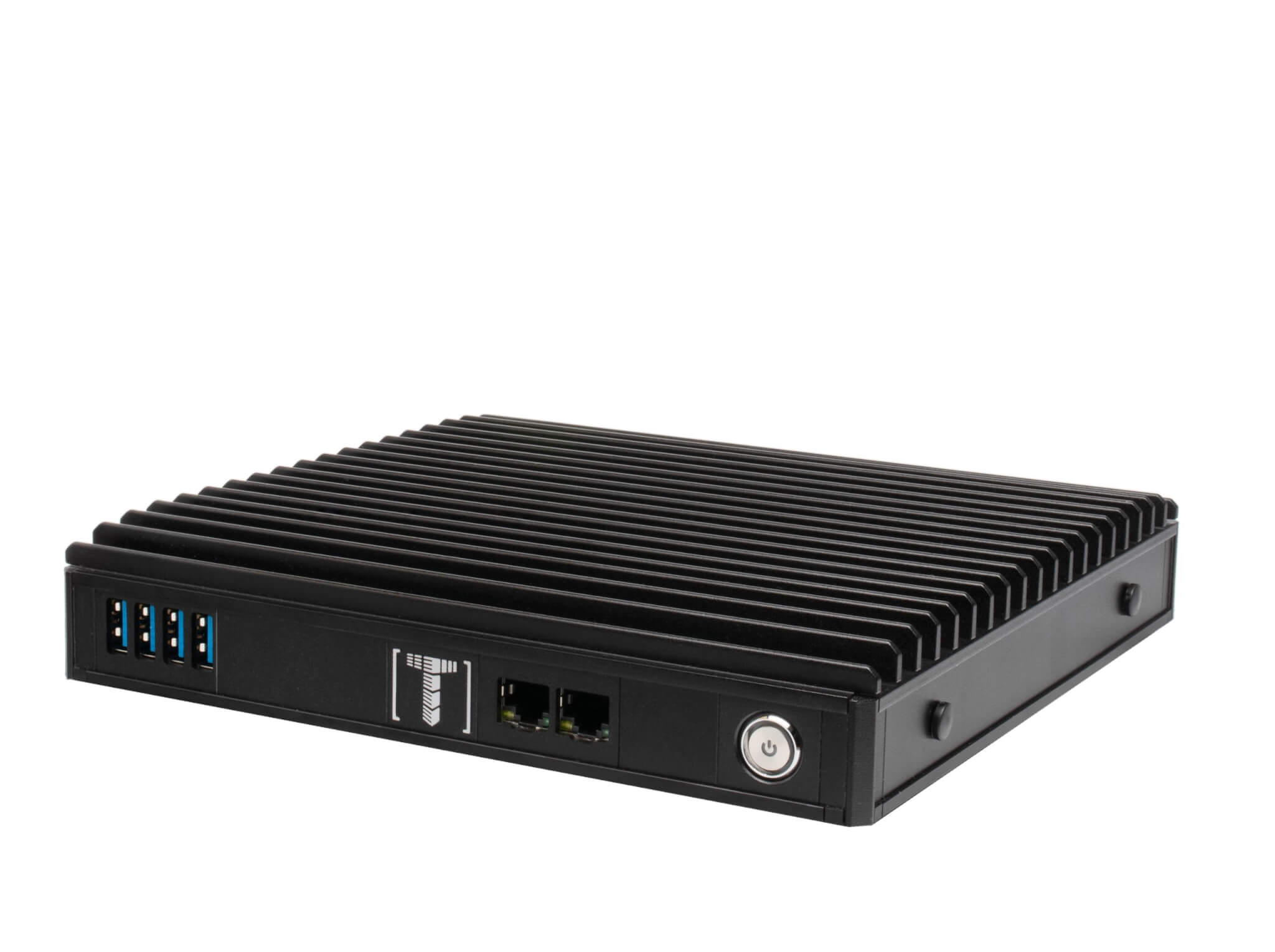

USB and LAN: four USB 3.0 ports and two Gigabit Ethernet ports

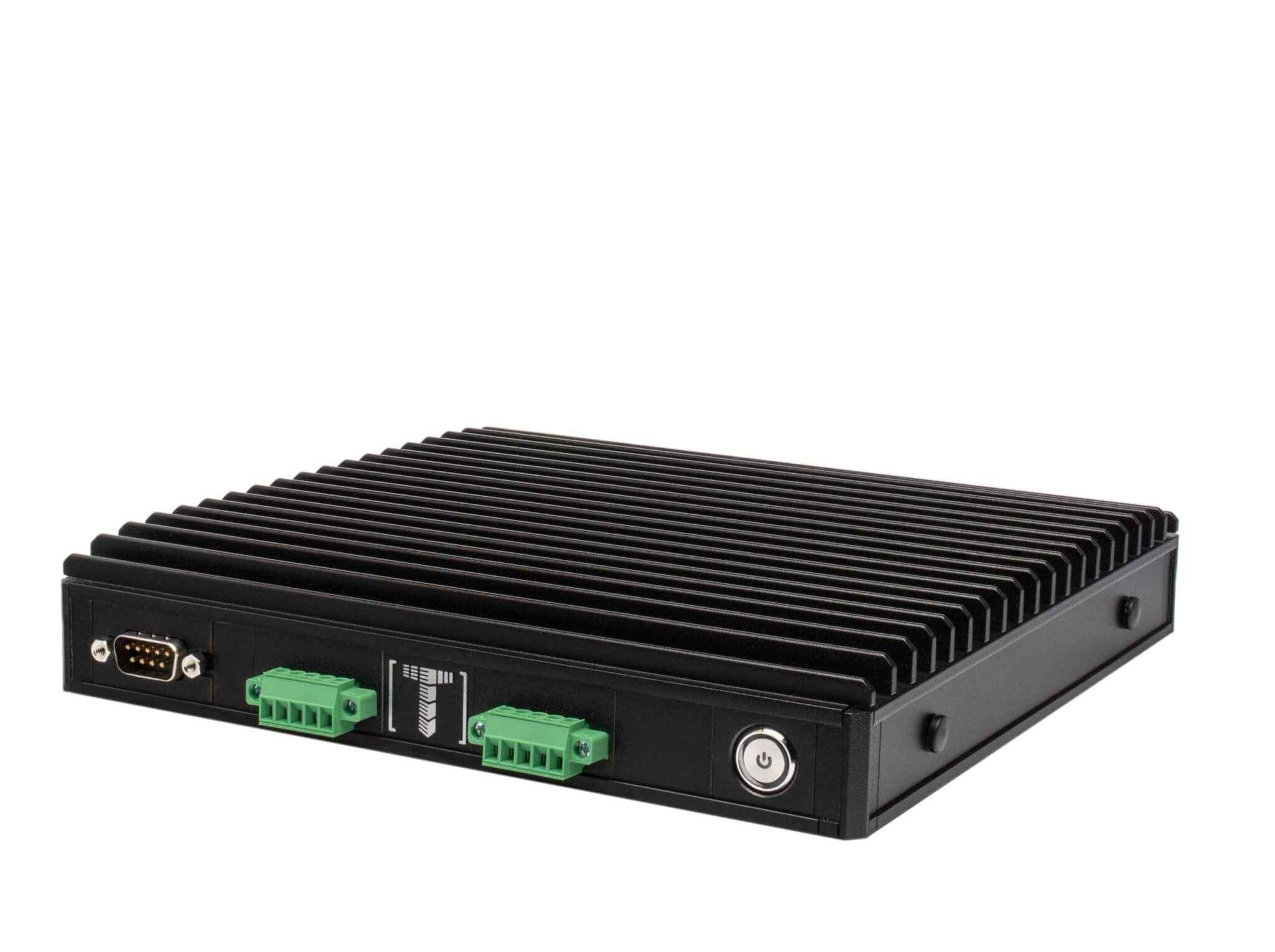

Serial and I/O: DB9 serial port and two terminal blocks

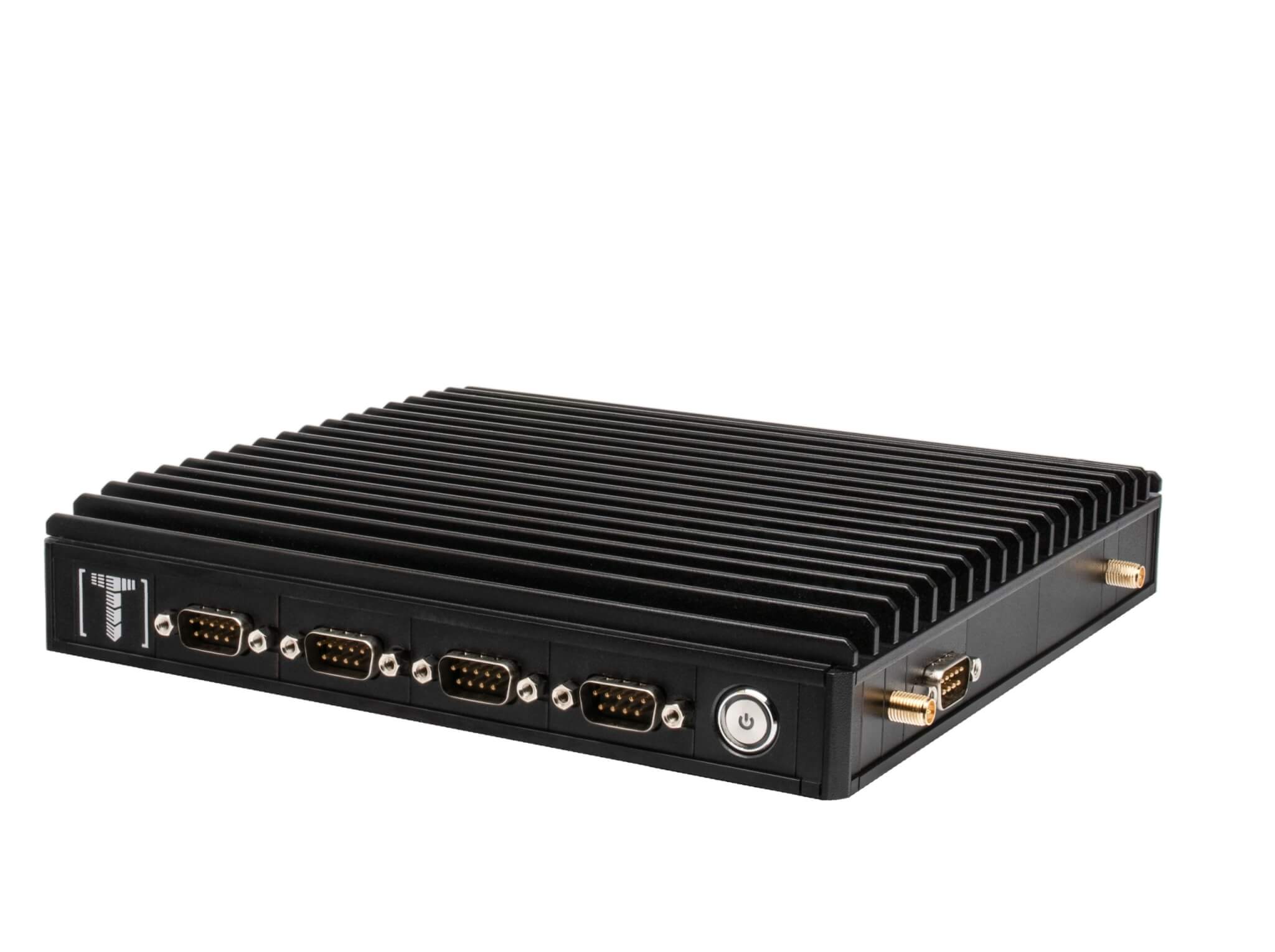

Serial and wireless: four DB9 serial ports and antenna connectors
Rear connectivity

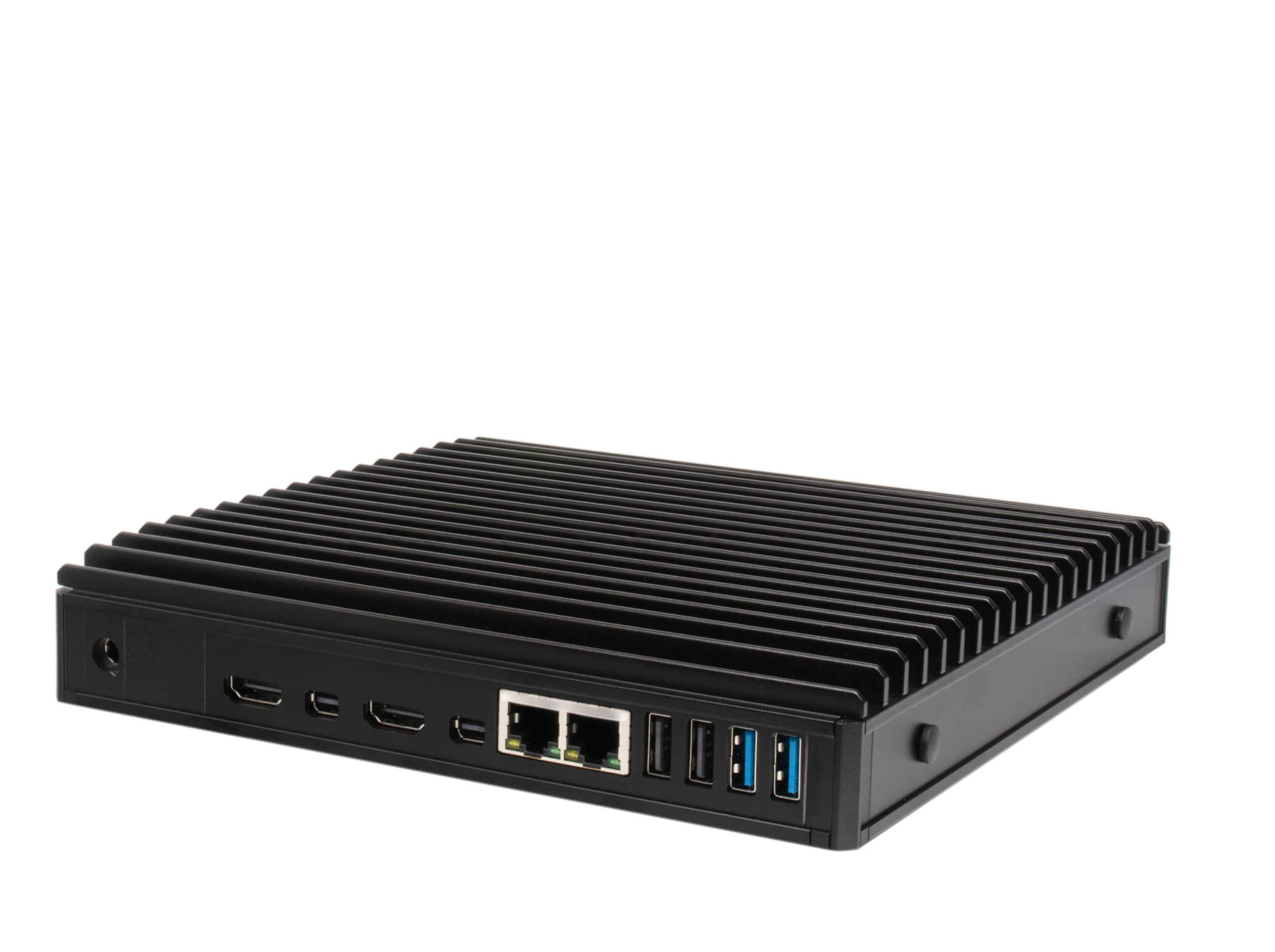

The rear carries the standard connections: two Gigabit Ethernet ports, four USB Type-A ports, two HDMI and two mini-DisplayPort outputs. You can drive up to four displays independently. Audio runs over HDMI or DisplayPort, and an analog 3.5 mm output is available as an option.
Wireless and cellular

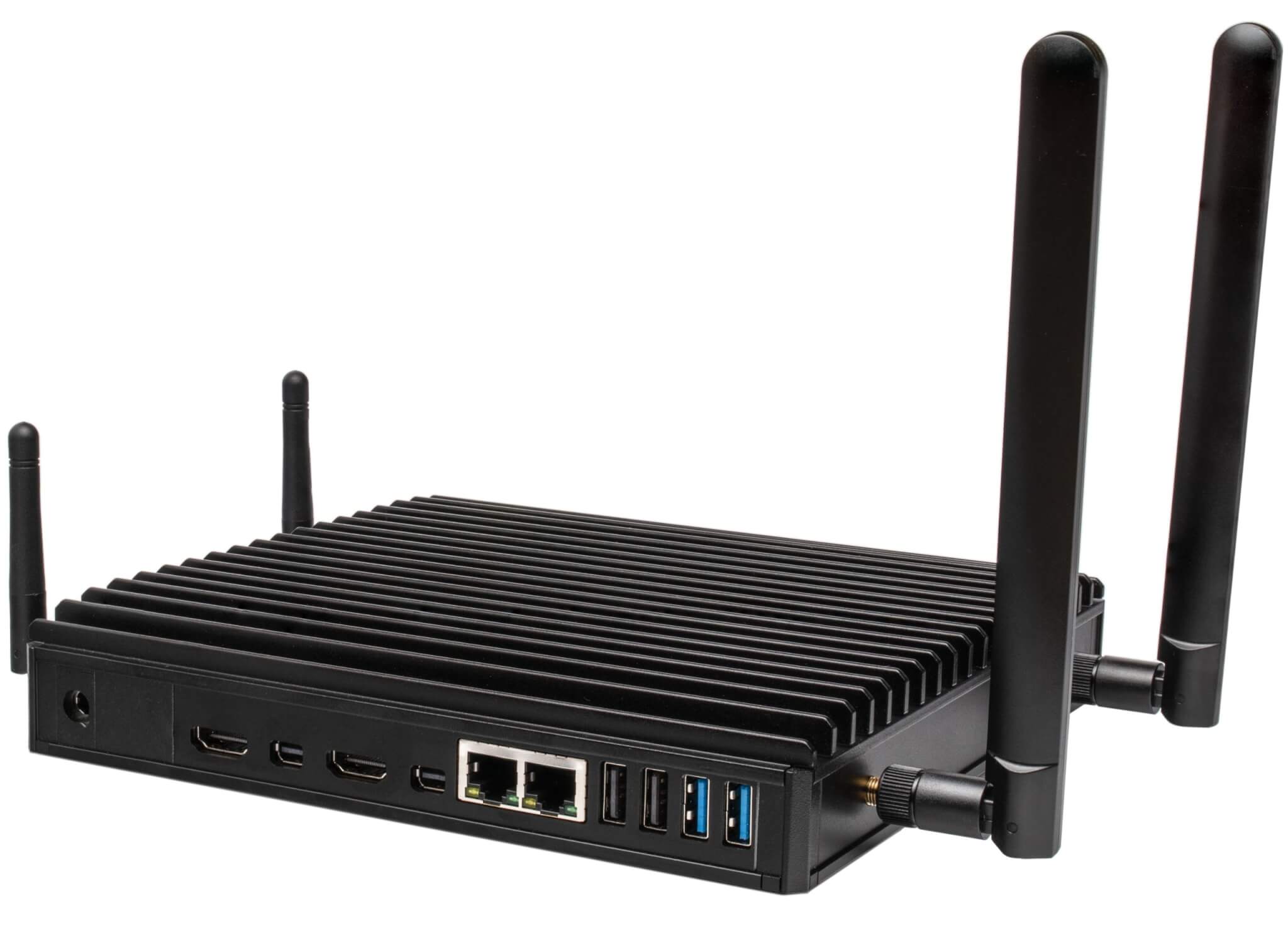

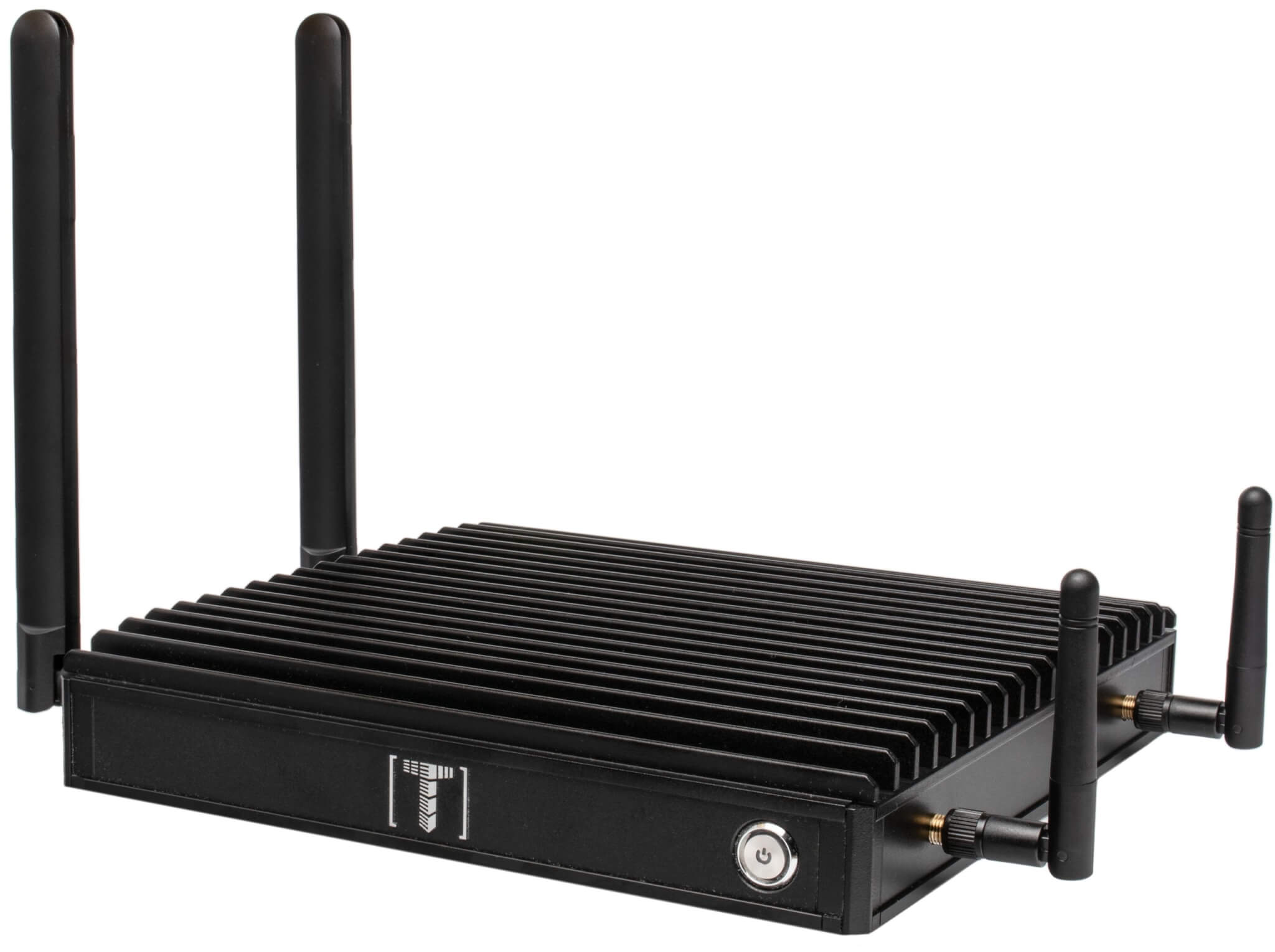

Wi-Fi 6E and Bluetooth 5.2 come on an M.2 module. For mobile connectivity, the Tensor I-22 supports LTE or 5G modems with a nano-SIM slot. Four antenna connectors let you place antennas outside a metal cabinet. This matters for installations in switch cabinets or vehicles.
Dimensions
- Standard housing: 200 × 200 × 35 mm
- Larger housing for the 28 W CPU option: 300 × 200 × 45.3 mm
- Mounting: VESA (side or bottom) or DIN rail
Technical specifications
| Processing | |
| Processor | Intel Core i7-1185G7E, Core i5-1145G7E or Celeron 6305E (11th Gen, Tiger Lake) |
| AI accelerator | Up to two Hailo-8 or Hailo-8L, 4-lane PCIe each; up to 52 TOPS with two Hailo-8 |
| Memory | Up to 64 GB DDR4-3200, 2 × SO-DIMM |
| Storage | M.2 Key-M (NVMe or SATA, 2280) on board; options for a second M.2 and a 2.5" SATA drive, up to 3 devices |
| Display and connectivity | |
| Display | 2 × HDMI 1.4b (4K@30), 2 × mini-DisplayPort 1.2 (4096 × 2160@60), four independent displays |
| Ethernet | 2 × Gigabit Ethernet (Intel I219 and I210); optional modules for additional Gigabit, 10 Gigabit, SFP+ and PoE ports |
| Wireless | Wi-Fi 6E and Bluetooth 5.2 (M.2 Key-E); LTE/5G (M.2 Key-B, nano-SIM) |
| USB | 4 × Type-A on board (2 × USB 3.1, 2 × USB 2.0); optional expansion modules |
| Audio | Over HDMI/DisplayPort; optional analog 3.5 mm |
| Industrial I/O | Optional isolated RS-232/RS-485, isolated GPIO and isolated CAN modules |
| System | |
| Security | Intel PTT; optional TPM 2.0 |
| Power | 12–56 V DC |
| Cooling | Fanless |
| Dimensions | 200 × 200 × 35 mm (standard); 300 × 200 × 45.3 mm (28 W CPU option) |
| Mounting | VESA (side or bottom), DIN rail |
| Warranty | 5 years |
Tensor I-22 FAQ
What is the Compulab Tensor I-22?
The Tensor I-22 is a configurable fanless industrial PC with an 11th Gen Intel Core processor and optional Hailo-8 AI accelerators. It is built for edge AI, machine vision and industrial automation.
How much AI performance does it offer?
With two Hailo-8 accelerators the system reaches up to 52 TOPS. Compulab has tested it with up to 13 simultaneous 1080p30 video streams.
Can I choose the interfaces?
Yes. The front panel and the expansion modules are configured to order. You can add USB, Ethernet, PoE, serial, GPIO and CAN interfaces.
Which processors are available?
Intel Core i7-1185G7E, Core i5-1145G7E and Celeron 6305E from the 11th Gen Tiger Lake family.
How many displays can I connect?
Up to four independent displays: two over HDMI and two over mini-DisplayPort.
Does it support Wi-Fi and cellular?
Yes. Wi-Fi 6E and Bluetooth 5.2 are available, as well as LTE or 5G with a nano-SIM slot.
How can I mount the Tensor I-22?
On a wall or machine with VESA mounting, or on a DIN rail.
Can I order a custom configuration?
Yes. Send us your requirements through the form below. We configure the system with Compulab and send you a quote.
Get a quote for the Tensor I-22
Tell us about your project: camera count, interfaces and environment. We will configure the right Tensor I-22 with Compulab and send you a quote.
Need a smaller system? See the Fitlet3 or Fitlet2, or go back to all Compulab products.
