Airtop3

Compulab

There are many good reasons for an Airtop3

nesevo is your global Airtop reseller and your trusted source for Compulab’s fanless PC solutions. Take a look at the specs.

nesevo is your global Airtop reseller

Highlights

  • Fanless cooling by Natural Airflow Technology
  • Core i9 9900K 8-core CPU + Quadro RTX 4000 graphics
  • Up to 128 GB RAM and 6 storage devices
  • Rich networking and I/O with support for extension cards
  • FACE Modules (Function and Connectivity Extension Module)
  • Compact 7.5 liter all-aluminium housing
  • User-friendly industrial design with tool-free service
  • Wide temperature range
  • 5 year warranty

FACE Modules

 Module Features
FM-AT3 Built-in-self-test | USB type C + 2x USB type A | audio | micro-SD | mini-PCIe
FM-POE 4x Gbit Ethernet with PoE (PSE) | 2x USB 2.0
FM-LANE4U4 4x Gbit Ethernet | 4x USB 2.0
FM-OPLN 2x Optical Gbit Ethernet (SFP+) | 2x USB 2.0
FM-EBP Gigabit Ethernet bypass
FM-SER 6x RS232 / RS485
FM-XTDM2 2x mini-PCIe sockets

CPU Options

Option CPU Model Details
C9700E Intel Core i7-9700E 8 cores, 8 threads, up to 4.4 GHz, 65W
CE2278 Intel Xeon E-2278GE 8 cores, 16 threads, 4.7 GHz, 80W
C9500E Intel Core i5-9500E 6 cores, 6 threads, up to 4.2 GHz, 65W
CE2176 Intel Xeon E-2176G 6 cores, 12 threads, up to 4.7 GHz, 80W
CE2244 Intel Xeon E-2244G 4 cores, 8 threads, up to 4.8 GHz, 71W
C4900 Intel Celeron G4900T 2 cores, 2 threads, 2.9 GHz, 35W
C9900 Intel Core i9-9900K 8 cores, 16 threads, up to 5.0 GHz, 95W



nesevo is your global Airtop reseller

Memory Options

  • 4 DIMM banks
  • DDR4-2666 modules
  • ECC RAM supported with Xeon Processors
  • Up to 128 GB of total RAM (4x 32 GB DIMM modules)

Storage Options

  • Supports up to six storage devices
  • 2x NVMe SSDs with up to 2 TB each
  • 4x 2.5” SATA HDDs/SSDs with RAID support
  • Storage devices are passively cooled in a dedicated thermal zone

Networking Options

  • 2x GbE on-board (Intel I219 and Intel I210)
  • Optional WiFi mdule (M.2 key E 2230) with two external antennas
  • Optional cellular communication module (M.2 key B 3042) with two external antennas, micro SIM adapter on-board
  • Multiple different networking extensions using FACE modules

Graphics Options

  • Integrated on-board Intel UHD Graphics 630
  • Discrete graphics cards
  • The four displays of the graphics card can work in tandem with the integrated graphics for a total of seven 4K displays.
nesevo is your global Airtop reseller
nesevo is your global Airtop reseller

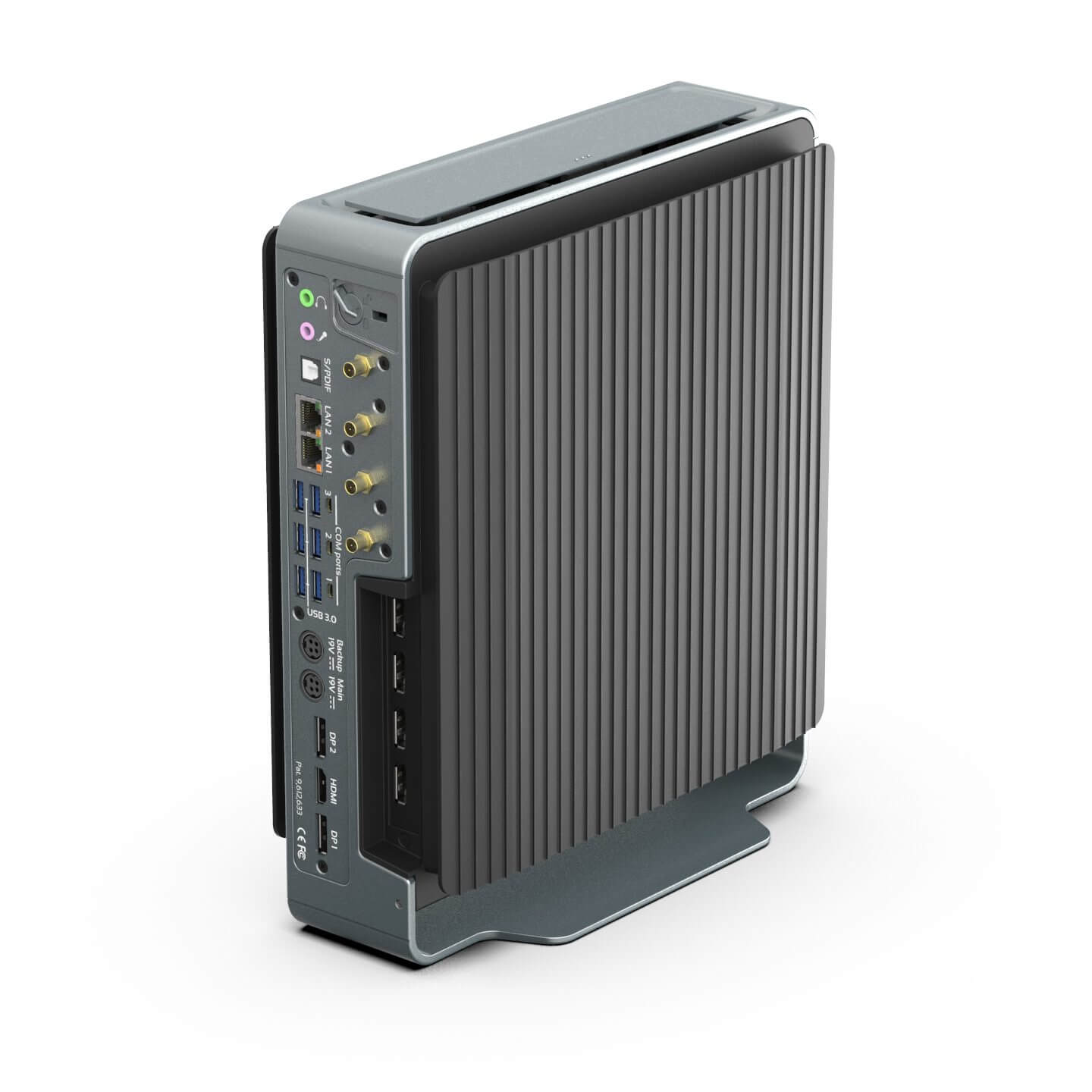

Connectivity, I/O, Extensions

  • 6x USB 3.1 gen 1 type-A on-board (back panel)
  • More USB with FM-AT3 FACE module
  • On-board Realtek ALC1150 audio codec with line-out | mic | optical S/PDIF
  • 3x full-UART RS232 serial ports
  • Extra 6 serial ports available with optional FM-SER FACE Module

  • PCIe x16 standard-height single-slot, Used for discrete graphics card (GeForce or Quadro) / NVM3 card / 10 GbE card / another full-height PCIe card
  • M.2 key E, M.2 key B, micro-SIM socket

BIOS, OS

  • AMI Aptio V BIOS
  • Windows 10 Professional
  • Linux Mint (Ubuntu based)
